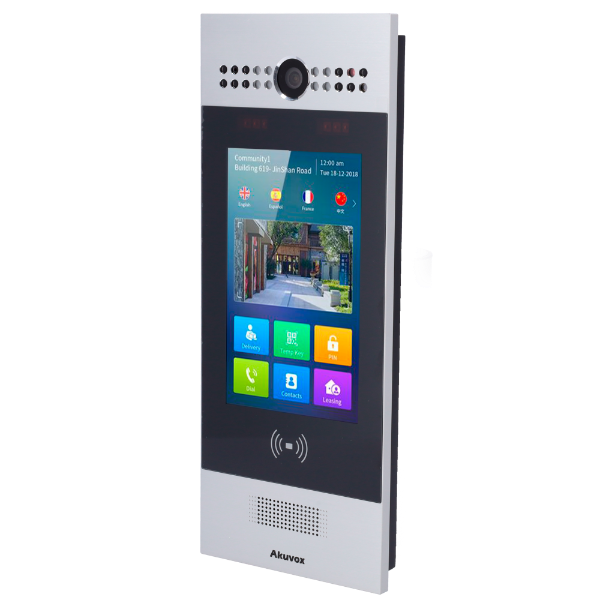

Akuvox dørstation, 7" tochskærm, IP65, PoE+, Cloud

3 MP kamera | To-vejs lyd og video
Verifikation: Ansigt, kort, PIN og QR | 3 relæer
Lejligheder: PoE+, SIP-standard
7" IPS touchskærm | Cloud Maintenance

Leverandør: Akuvox

Varenummer: AK-R29S

Akuvox R29 er en SIP-videodørtelefon med en 7” touchskærm, som udfører AI-drevet offline ansigtsgenkendelse til døradgang. Det bruges typisk i lejlighedsbygninger, kontorbygninger og større bygningskomplekser.

Muliggør lyd- og visuel overvågning af døre/porte, som øger sikkerheden i boliger eller kommercielle bygninger
Tillader både lyd- og videokommunikation til en IP-telefon, mobilklient eller softphone
Mulighed for at fjernstyre døren/porten
Præsenterer oplysninger og brugernavigationsmuligheder, der er unikke for din virksomhed
Eliminerer behovet for, at personale fysisk skal placeres ved døren/port
Fremskynder responstiden til besøgende, leverings- og servicepersonale, der kræver adgang

Brand	Akuvox
Model	R29S
Access control	Door opening with facial recognition, RFID EM 125 kHz and MF 13.56 MHz, PIN and QR cards, with records Anti-spoofing function not supported
Capacity	Contacts: 3.000 RFID users: 20.000 faces and 20.000 cards/passwords
Screen	Android 7" IPS LCD full color touch
Outputs	3 of relay for main locks (12V/500mA), Wiegand OUT and RS485
Inputs	3 pushbutton and Wiegand IN inputs
Advanced access functions	Anti-passback (configurable via Cloud, in Office Project)
Remote access	SmartPlus cell phone application or configuration via WEB browser Remote access by Cloud: Included
Image sensor	1/3" 3 Megapixel CMOS with infrared sensor and light sensor
Viewing angle	120° (H) / 64° (V)
Camera resolution	1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p Supports bidirectional video
Video encoding	H.264
Audio	Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology
Audio format	SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722 DTMF (RFC2833), SIP Info
Network interface	Ethernet 10/100 BaseT / RS485 / RTSP
Mode of operation	Local network and/or via cloud in different networks
Firmware updates	Remote with cloud via installer account or via web browser locally
Material	Aluminium alloy
Degree of protection	IP65 y IK06
Temp. operation	-20º C ~ +55º C
Dimensions	With surface support: 324 (H) x 130 (W) x 33 (D) mm With flush mounting bracket: 324 (H) x 130 (W) x 60 (D) mm
Power	DC 12 V / 1000 mA máx. / IEEE802.3af PoE
Weight	1100 g

Beskrivelse

Muliggør lyd- og visuel overvågning af døre/porte, som øger sikkerheden i boliger eller kommercielle bygninger
Tillader både lyd- og videokommunikation til en IP-telefon, mobilklient eller softphone
Mulighed for at fjernstyre døren/porten
Præsenterer oplysninger og brugernavigationsmuligheder, der er unikke for din virksomhed
Eliminerer behovet for, at personale fysisk skal placeres ved døren/port
Fremskynder responstiden til besøgende, leverings- og servicepersonale, der kræver adgang

Brand	Akuvox
Model	R29S
Access control	Door opening with facial recognition, RFID EM 125 kHz and MF 13.56 MHz, PIN and QR cards, with records Anti-spoofing function not supported
Capacity	Contacts: 3.000 RFID users: 20.000 faces and 20.000 cards/passwords
Screen	Android 7" IPS LCD full color touch
Outputs	3 of relay for main locks (12V/500mA), Wiegand OUT and RS485
Inputs	3 pushbutton and Wiegand IN inputs
Advanced access functions	Anti-passback (configurable via Cloud, in Office Project)
Remote access	SmartPlus cell phone application or configuration via WEB browser Remote access by Cloud: Included
Image sensor	1/3" 3 Megapixel CMOS with infrared sensor and light sensor
Viewing angle	120° (H) / 64° (V)
Camera resolution	1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p Supports bidirectional video
Video encoding	H.264
Audio	Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology
Audio format	SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722 DTMF (RFC2833), SIP Info
Network interface	Ethernet 10/100 BaseT / RS485 / RTSP
Mode of operation	Local network and/or via cloud in different networks
Firmware updates	Remote with cloud via installer account or via web browser locally
Material	Aluminium alloy
Degree of protection	IP65 y IK06
Temp. operation	-20º C ~ +55º C
Dimensions	With surface support: 324 (H) x 130 (W) x 33 (D) mm With flush mounting bracket: 324 (H) x 130 (W) x 60 (D) mm
Power	DC 12 V / 1000 mA máx. / IEEE802.3af PoE
Weight	1100 g

Akuvox dørstation, 7" tochskærm, IP65, PoE+, Cloud

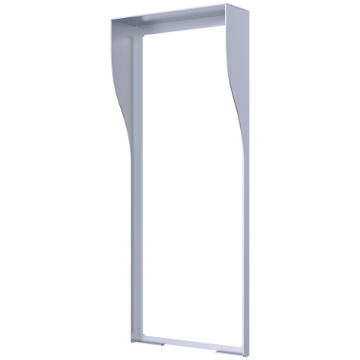

Akuvox regncover til AK-R29, planforsænket
